SPECIFICATIONS
Brand Name: LIONSONIC
Model Number: TF1000
Package: YES
Bearing: Fluid Bearing
Blade Quantity: 7
Power Interface: 4PIN
Hign-concerned Chemical: None
Cooler Type: TOWER
Origin: Mainland China
Supported CPU: LGA 1150
Supported CPU: LGA 1151
Supported CPU: LGA 1155
Supported CPU: LGA 1156
Supported CPU: LGA 1170
Supported CPU: LGA1200
Supported CPU: LGA 1356
Supported CPU: LGA 1366
Supported CPU: LGA 1700
Supported CPU: LGA 2011
Supported CPU: LGA 2011-3
Supported CPU: LGA 2066
Supported CPU: Socket FM1
Supported CPU: Socket FM2
Supported CPU: Socket AM3
Supported CPU: Socket AM5
Supported CPU: Socket AM2
Supported CPU: Socket AM2+
Supported CPU: Socket FM2+
Supported CPU: Socket AM3+
Supported CPU: Socket FM2/FM2+
Supported CPU: AM4
Supported CPU: FM1
Lines: 4 LINES
Fan Life: 50000 hrs
TDP: 130
Heatpipes: 6
Noise: 28dBA
Fan Size: 90
Fan Speed: 800 - 2000
Air Pressure: 53
Choice: yes
semi_Choice: yes
We will ship every day!
Dear friend.Due to time differences we may not be able to respond to your message in time. We will ship your order within{48 hours}.If you have any questions,please leave me a message and we will reply to you as soon as possible.You are welcome to place an order.
We will wrap it well with sponge and foam, please be assured. The product will not be damaged.
Note before you buy :
AMD motherboard comes with Cooler Bracket , if your AMD motherboard without Cooler bracket . Please purchase separately by Yourself .
FEATURES

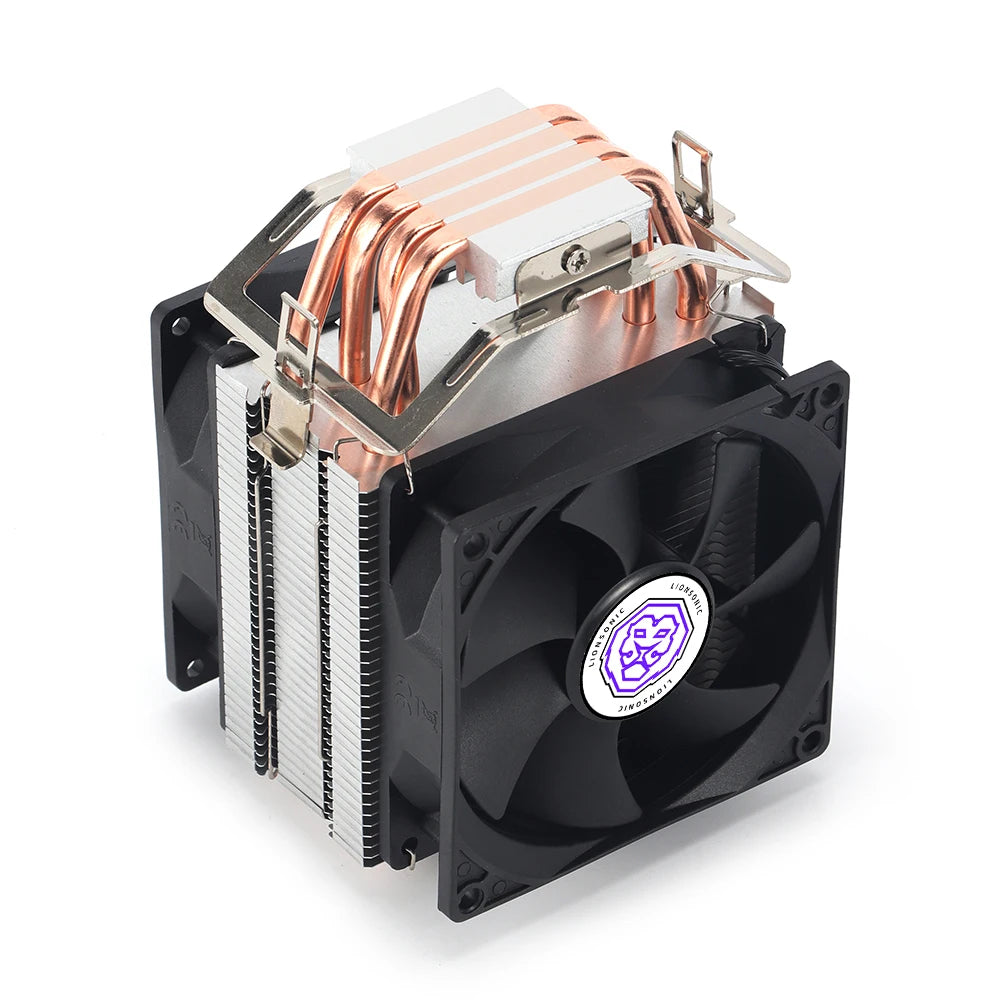

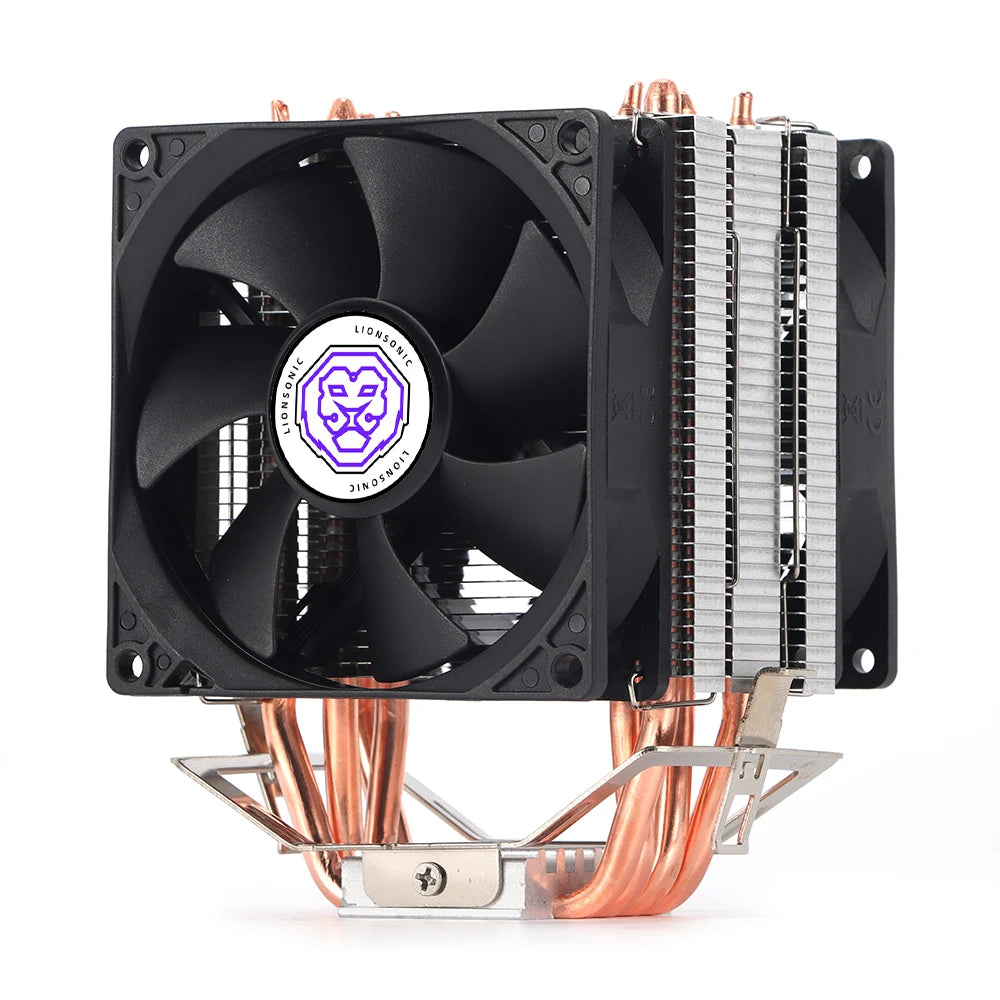

4x6mm high-performance U-shaped bent sintered pure copper heat pipe, single tower design, 35 high-purity aluminum sheets.The height is only 135mm.
Heat pipe direct contact process design,The zero contact of the heat pipe is conducive to the first time the heat generated by the CPU is transferred to the surrounding.
Wear FIN technology to tightly fit the heat pipe and fins, ensuring unobstructed heat transfer
The 9CM fan has stronger heat dissipation.Quiet temperature control speed regulation, high performance hydraulic bearing with wind volume up to 53CFM at 800-2000RPM effectively reduces noise, bringing quiet enjoyment to players.
Intelligent temperature control, Colorful fan.PWM temperature control adjustment, uniform and soft color, non-full load state noise is lower.
Suitable for Intel and AMD platforms In compatibility and lighting upgrade heat dissipation up to 130W, fully applicable to fully compatible INTEL, AMD full series of processors.

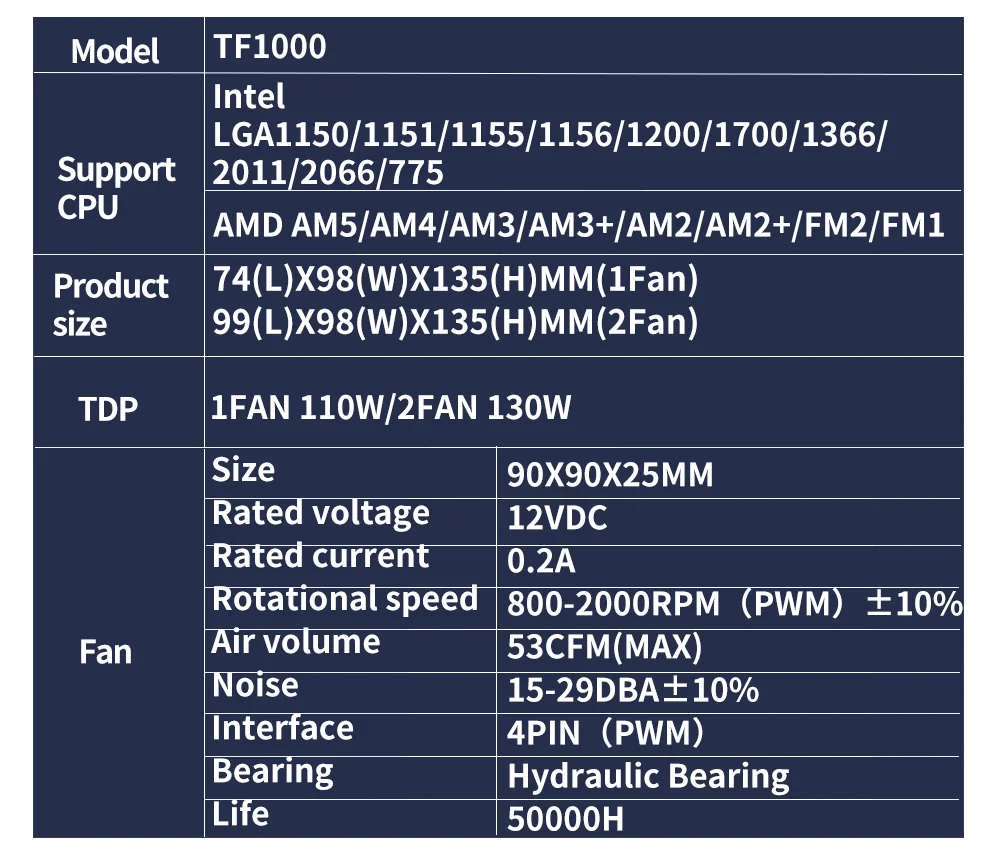

SPECIFICATIONS
Brand Name:LIONSONIC
Model Number:TF1000
Compatible CPU:Intel and AMD
Product size: 74(L)x98(W)x135(H)mm(1 fan)
99(L)x98(W)x135(H)mm(2 fan)
Heatsink Material:Copper & Aluminum
Product weight:1 Fan 480g,2 Fan 560g
Type:4 Heat pipe
TDP:1 Fan 110W,2 Fan 130W (The fan connectors have been combined into one connector.)
Fan Size:90x90x25mm
Fan Speed:800-2000RPM
Bearing:Hydraulic bearing
Power Interface:4 Pin PWM Fan
Voltage:12V DC
Current:0.2A±10%
Power:2-4W
Air Volume:53CFM(MAX)
Noise:15-29dBA±10%
Life:50000 hrs
For Intel Socket: LGA 1700/1200/1150/1151/1155/1156/775/1356/1366
Package Included:
1x CPU Cooler FAN

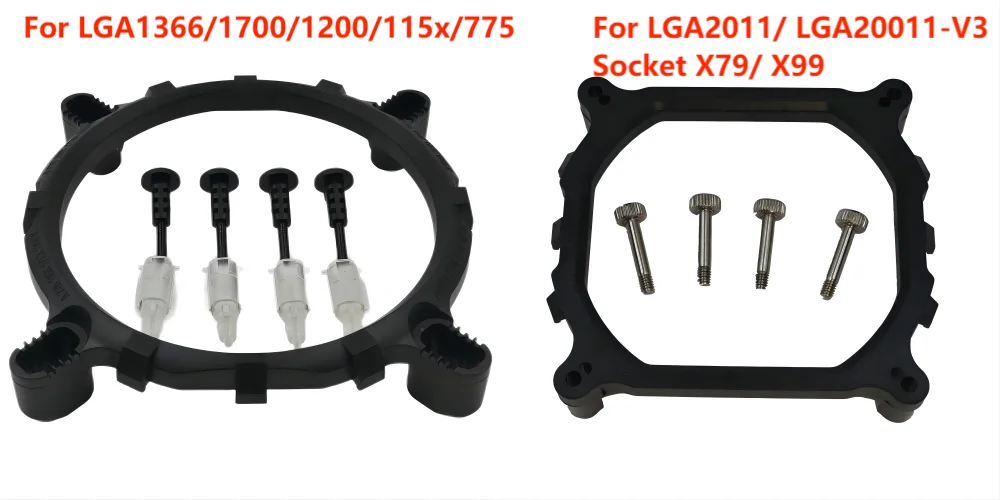

1x Cooler Bracket(Not included in AMD version)
1x Thermal Paste
4Pin PWM function introduction: The fan can be automatically controlled by the motherboard to adjust the fan speed in time according to the computer temperature. Support automatic speed regulation. Accelerate heat dissipation at high temperatures. Decelerate operation at low temperature. Slow down the wear of fan bearings.
Fan version introduction:
No light 4 Pin PWM: The fan does not have LED lights. No lighting.
Power interface:Motherboard 4Pin PWM.
Rainbow light 4Pin PWM: Rainbow RGB lights fix a multicolor mode. It won't change. (cannot be manually adjusted)
Power interface: motherboard 4Pin PWM. (RGB does not require a separate power supply.)
RING-RGB 4Pin PWM:RING-RGB lights fix a multicolor mode. It won't change. (cannot be manually adjusted)
Power interface: motherboard 4Pin PWM. (RGB does not require a separate power supply.)
RGB 4Pin PWM: RGB The lights can automatically change multiple color modes. (not manually adjustable)
Power interface:Motherboard 4Pin PWM.(RGB does not need a separate power supply.)
ARGB 4Pin PWM 5V 3Pin:With 5V-3Pin RGB connector. Synchronizable RGB lighting via motherboard, Sync ready with all 5V 3PIN motherboard including Gigabytes, Asus, MSI and so on.
Please note:(Please make sure your motherboard supports 5V-3Pin RGB connector. Otherwise it will not be available.)
Power interface:Motherboard 4Pin PWM+5V-3Pin.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
